Source Explorer Setup

Prerequisites

1. Target Directories for Persistent Data The Docker Compose installation uses two directories for persistent data. Ensure your user account has full read/write permissions for these directories:

   • exportdata: Target directory for Elementary, reports, and Solr configuration.

2. Internal Source Schema Access to source data inside the internal database.

   If you want Source Explorer to work with the migration, TIN, and NPI report UI screens, your schema's tables must be organized into a V12 object-type structure (i.e., account, contact, etc.).

Configure Source Explorer

By default, the Monarch internal landing and staging schemas are already configured for indexing. These sources are named Landed and Merged respectively. NOTE: Links to source explorer within Monarch (e.g. from the reports page) default to these source schemas so modifying or omitting them might cause issues with the links.

To enable Source Explorer for additional schemas, you must update the following monarch_config tables:

Configuration Tables

• source_explorer Defines the source name and which schema it indexes.

• se_object Specifies the objects (tables) to index within a source (schema). Includes settings such as the unique identifier column, display name for the UI, and facet fields used for grouping objects together based on like fields, such as State, and Record Type.

• se_object_field Lists the fields (columns) for each object that should be indexed and displayed in Source Explorer. See following section for required fields.

Required Fields

For each object in se_object, a row for each of these fields must be defined in se_object_field for Source Explorer to function properly:

• ID – The unique identifier column in the source table.
• Name – The primary display name shown in results and detail views.
• State – Enables filtering by U.S. state.
• Record Type – Enables filtering by record type (e.g., Provider Group, Location).

Optional Fields

These fields are not required but will enhance the record display if configured:

• NPI – National Provider Identifier; shows "N/A" if not configured.
• TIN – Tax Identification Number; shows "N/A" if not configured.
• Street – Street address; shows "N/A" if not configured.
• City – City name; shows "N/A" if not configured.
• Phone – Phone number; shows "N/A" if not configured.
• Source – Indicates the data source; shows "N/A" if not configured.
• Source URL – External or internal link to the record; if configured, becomes a clickable link that opens in a new window.
• Other Fields – You can configure additional fields to appear in the details view. If not configured, they will be excluded from the UI.

Lookup Configuration (se_object_lookup)

This table is used to define relationships (foreign keys) between objects to support hierarchy and related records.The Source Explorer tool can display related records in a hierarchy if foreign key fields are properly configured. To enable this, define the lookups accordingly. Each lookup entry must include:

• Source Name – The name of the configured source (e.g., alphacare_raw).
• Object Name – The name of the object containing the foreign key.
• Field – The field that stores the reference to another object.
• Target Object – The name of the object being referenced.
• Reference Field – The field on the target object that the reference points to (typically the ID).

Example Configuration

Example Internal DB Table:

raw_alphacare.account

name_col	uuid_col	state_col	street_col	city_col	tin_col	npi_col	phone_col	source_col	recordtype_col	fk_col
Accurate Healthcare	123e4567-e89b-12d3-a456-426614174000	CA	123 Main St	Los Angeles	123456789	1234567890	555-1234	Alphacare	Provider Group
Accurate Healthcare New York Clinic	987e6543-e21b-12d3-a789-426614174001	NY	456 Oak Ave	New York	987654321	0987654321	555-5678	Alphacare	Location	123e4567-e89b-12d3-a456-426614174000

Configuration tables

monarch_config.source_explorer

source_schema	name	source_label	use_default_lookups	enabled
alphacare_raw	raw_alphacare	alphacare	false	true

monarch_config.se_object

source_name	object_name	id_col	display_name	facet_fields	enabled
alphacare_raw	account	uuid_col	Account	{State, "Record Type"}	true

monarch_config.se_object_field

source_name	object_name	column	label	enabled
alphacare_raw	account	uuid_col	Id	true
alphacare_raw	account	state_col	State	true
alphacare_raw	account	street_col	Street	true
alphacare_raw	account	city_col	City	true
alphacare_raw	account	tin_col	TIN	true
alphacare_raw	account	npi_col	NPI	true
alphacare_raw	account	phone_col	Phone	true
alphacare_raw	account	source_col	Source	true
alphacare_raw	account	recordtype_col	Record Type	true
alphacare_raw	account	fk_col	Parent ID	true

monarch_config.se_object_lookup

source_name	object_name	field	target_object	ref_field	enabled
alphacare_raw	account	fk_col	account	id	true

Hard Refresh Source Explorer

1. Shut down docker containers

Run: docker compose down

2. Run setup script

Navigate to /src/custom/source-explorer and then run ./setup_solr.sh

3. Start Docker Container with Source Explorer Profile

Run: docker compose up -d

4. Index Source Data into Solr

Navigate to the Monarch API Docs and authenticate. Then run the /indexsource endpoint with source schema you are pulling data from.

Your source data is now indexed in Solr and is accessible by source explorer.

Navigate to /reports/source-explorer in the browser to use the Source Explorer UI

Advanced Features

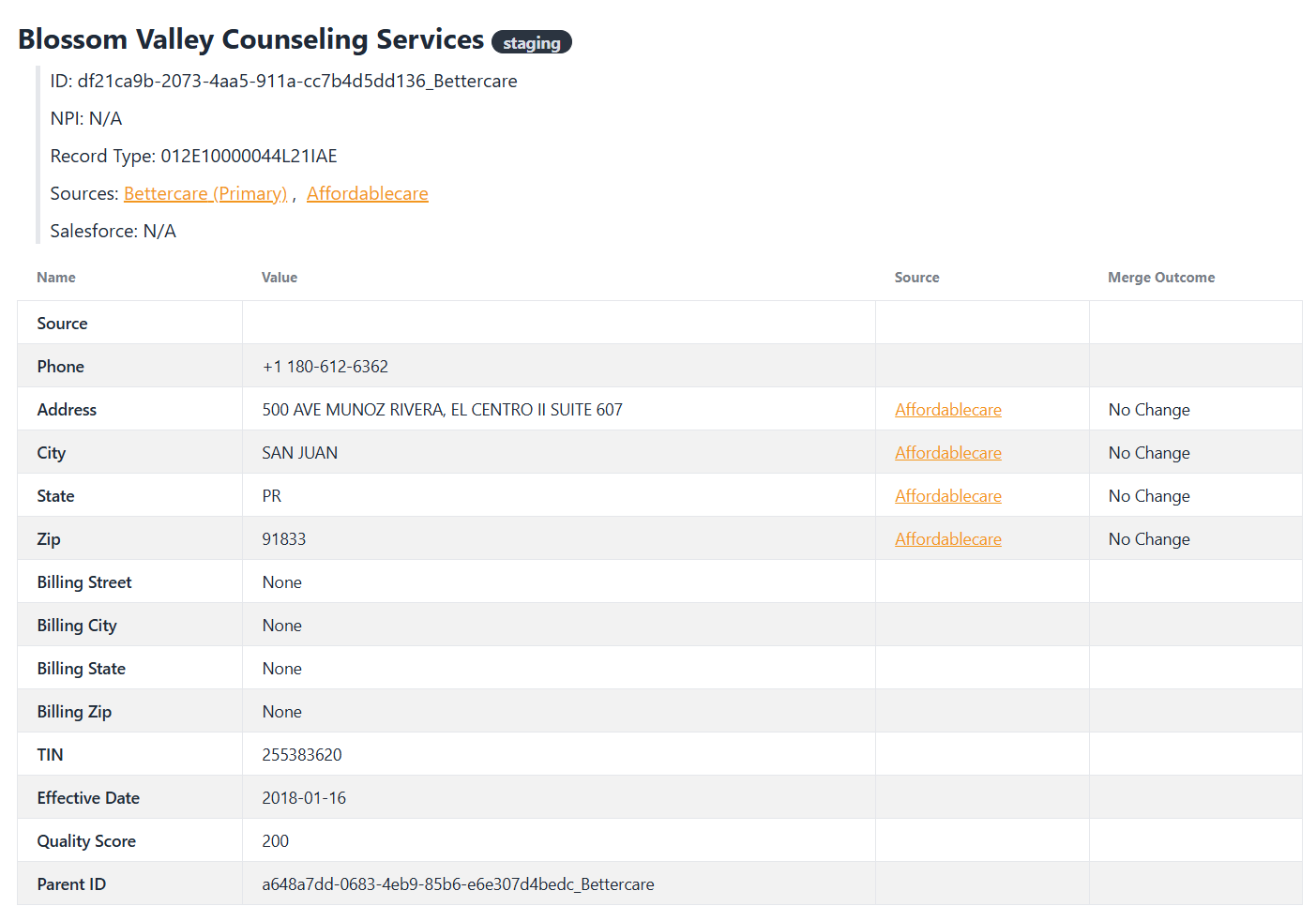

Source Lineage

Source explorer can show source lineage when viewing the merged record. By default, the links will take you to the Landed record, but you can configure it to link to a different schema. To set this up, ensure that your source in the source_explorer config has the same name as the source_name in the source_ingestion config. Then run DAG provider_merge to link the records together. Once this is set up and the sources have been indexed, navigate to the Merged version of the record and the links will be in place.
