smart_delete DAG

Introduction​

The smart_delete DAG provides functionality for marking records for soft deletion and deleting records from Salesforce in a reverse-order representation of the object graph. This ensures that objects are deleted in the correct order to prevent foreign key issues.

Both functionalities can be run independently, allowing users to review records marked for soft deletion before executing the actual deletion.

UI Parameters​

Users can configure the DAG using the following parameters:

  • skip_build_delete_list (boolean) Flag to skip updating int_id_tracking tables and proceed directly to deleting records already marked for soft deletion.

  • schemas_to_update (string) Dropdown selection for choosing which schema(s) to update in the int_id_tracking table.

    • Options: [landing, staging]
    • If left empty, the build lists will run but return nothing.

  • method_to_mark_records_for_deletion (string) Dropdown selection for choosing the method used to mark records for soft deletion.

    • Options: [smart delete, delete all]

  • delete_all_source_name (string) Input field specifying the source name for the "delete all" method.

  • run_delete (boolean) Flag to skip the Salesforce deletion tasks.

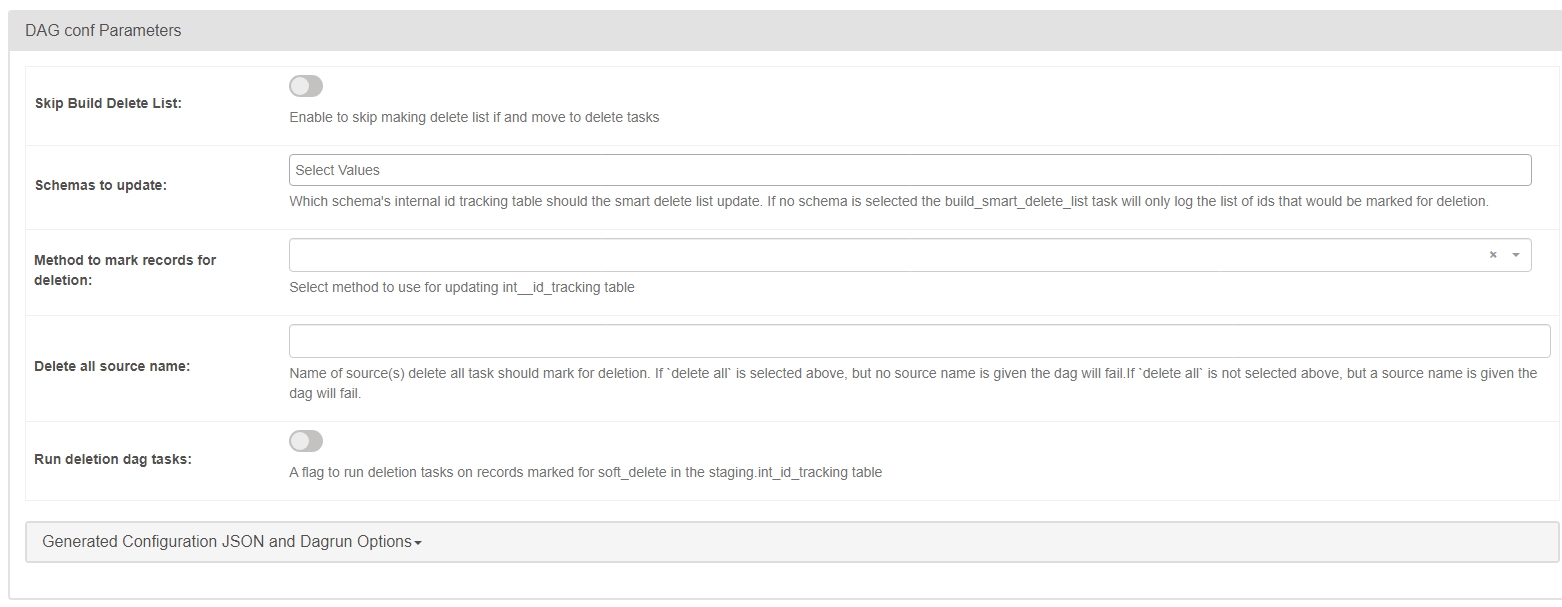

DAG Parameter UI

Smart Delete Generation​

The Smart Delete feature allows for the deletion of entire "account trees" from the internal database. It retrieves Salesforce IDs from the utilities.to_smart_delete table and traverses the landing schema, deleting all related records in a structured manner. Once deleted, the data is no longer pulled into staging and is not uploaded to Salesforce.

Exclusion Handling​

Any Migration IDs in the utilities.to_smart_delete_exclude table will be skipped, along with any related records in the tree.

  • to_smart_delete (schema: utilities)
    • Column: id (Salesforce ID)
    • Populated by the migration team.
  • to_smart_delete_exclude (schema: utilities)
    • Column: id (Migration ID)
    • Prevents deletion of linked records.

Process​

Smart Delete works by processing each account individually and marking all dependent records for deletion. Dependents are identified using the schema configuration shared with the upload process.

  1. to_smart_delete is joined to Account.
  2. The specified Salesforce ID is marked for deletion.
  3. A breadth-first search (BFS) is performed, following foreign key relationships to find and mark dependents.
  4. If a Migration ID is found in to_smart_delete_exclude, that branch of the BFS is terminated.
  5. Once all entities are marked for deletion in staging.int__id_tracking, the process completes.

Delete All​

The Delete All method allows for bulk deletion of all object types from a specified Salesforce source.

  • It marks all records in staging.int__id_tracking for soft deletion where the int__source matches the delete_all_source_name argument.

Soft Delete Flag​

Records marked with soft_delete = true in staging.int__id_tracking will not be removed on subsequent runs. If Smart Delete needs to be rerun, this flag must be manually set to false.

Process Overview​

  1. Validate Parameters

    • Ensure valid user inputs.
    • If skip_build_delete_list = false, a method_to_mark_records_for_deletion must be selected.
    • If delete_all is selected, delete_all_source_name must be provided.

  2. Determine Mark for Deletion Method

    • Will be one of these options:
      • smart_delete
      • delete_all
      • None (Only valid when skip_build_delete_list = true. Will skip directly to "Run Delete Decision").

  3. Run Deletion Decision and Execute Deletion Process

    • Will either
      • Skip the remaining DAG execution (if applicable).
      • Proceed to the deletion graph workflow.

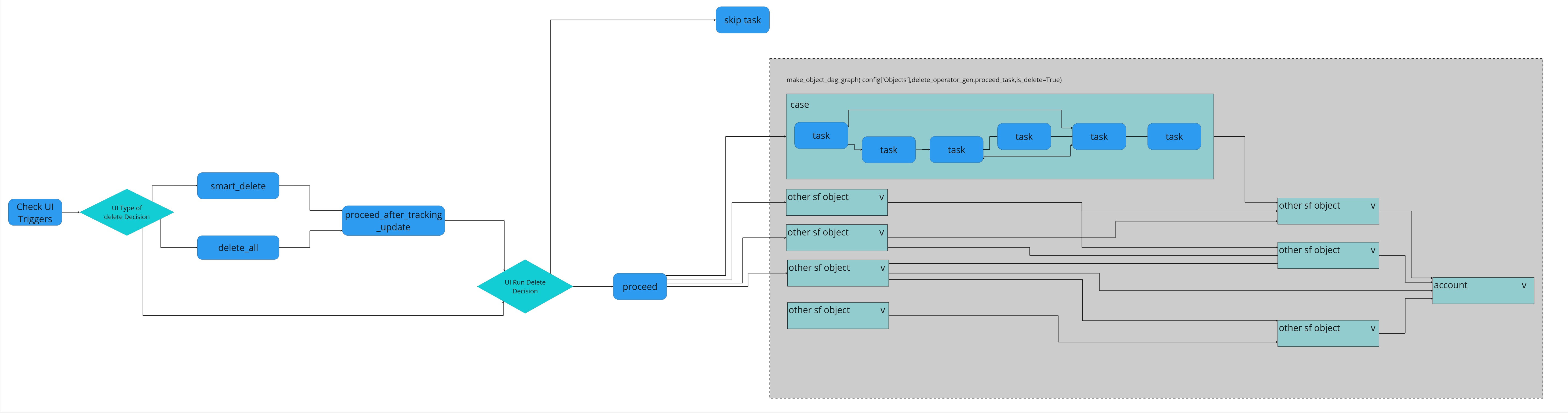

DAG Diagram
