Custom Reporting

After creating a custom transform process, we may want to create custom reports based on the data we've imported. This document describes the process for doing so.

Overview

Monarch uses config files to automatically copy custom tests or models into the custom_reports schema, which the UI can ingest and display for each source.

The high level steps are

1. Create your dbt tests / models with the columns Monarch requires
2. Run your dbt transforms/tests
3. Set up the config tables - report_master and test_to_report_mapping
4. Run DAG 05_generate_and_export_reports

1. and 2. Creating and Running DBT Tests

In your custom dbt package (custom/dbt/<dbt-name>) create your desired tests in the test folder (or however else desired). Ensure that you are testing data in the transform schema, since these tests should be run right after your data is moved into the transform schema (before it is moved into landing). Your tests should return all the rows in your data that fail the test (ie, if you want to confirm that there are no null names in your account table, you should query for all rows with null names. The test will pass if zero rows are returned). The file for your test can be named anything, but most tests are in this format:

Sample test

This test fails if the account name contains any instances of the letter "a".

select
    -- Informative column for the test
    a.name,
    -- Required columns for custom_reports
    a.id,
    a.source,
    a.source_id,
    concat("Account ", a.id, " contains the letter a") as message
from custom_transform.account a
where a.name LIKE '%a%'

You must include the following data in your table for Monarch to parse it for custom_reports. The columns can be named what's listed below (what Monarch looks for by default) or they can be named something else. In the latter case, the corresponding override fields in the config must be populated. See the test_to_report_mapping config section below for more details.

• id - the record's Id
• source - the source of the data, matching one of the sources in the source_ingestion config
• source_id - the source_id column from the data table

We recommend including this data as well. These need to be specified as column overrides in test_to_report_mapping since Monarch defaults to preset values rather than these column names.

• error_type - sometimes referred to as error_code. It's a high level name for the error (e.g. "Contact with inactive NPI" or "Account specialty invalid picklist value"). Override with error_type_override_col
• message - sometimes referred to as error_detail. It's a quick description of the error itself, sometimes containing the problematic record's Id. Override with message_override_col

Running Tests

At the end of your transform dag, add a task that runs your tests

    transform_dbt_test = DBTOperator(
        task_id="<name_of_the_test_task_here>",
        command="test",
        profile_dir=f"{dag_absolute_path}/custom/dbt",
        project_dir=f"{dag_absolute_path}/custom/dbt/<dbt_folder_name_here>",
    )

3. Setting Up Configuration Tables

Table Schema

These are the Monarch Config tables used for custom reporting:

monarch_config.test_to_report_mapping

• Defines which test's data should populate which report generated by DAG 05_generate_and_export_reports.
• Required Columns:
  • report_name - The name of the report. This will be both the table name in the db schema as well as what will show up on the UI (e.g. pga_with_no_locations)
  • report_schema_name - the name of the schema where this report will go (e.g. custom_reports)
  • test_schema_name - the schema where the custom test is (e.g. assert_pga_has_location)
  • table_name - which custom test to import for this report (e.g. samplecare_dbt_test__audit)
• Recommended Columns:
  • default_error_level - The default value for the error level if error_level_override_col isn't set. Set this to "Warning" or "Error"
  • default_error_type - The default value for the error type if error_type_override_col isn't set
  • default_message - Description to populate the "Error Details" column on the report screen if message_override_col isn't set
  • recommended_fix - Set this to "Business Review", "Business Fix", "IT Fix", or "Not An Issue"
• Override Columns - If your table has a column that functions as one of these columns but is named something else, you can put the name of the column in this config
  • error_type_override_col - another way to name the report. Defaults to the value of table_name in this config
  • message_override_col - the description of the error. Defaults to the value of default_message in this config
  • recommended_fix_override - "Business Review", "Business Fix", "IT Fix", or "Not An Issue". Defaults to the value of recommended_fix in this config
  • sourceid_col_override - Monarch expects this column to exist in the test and will look for source_id by default
  • source_col_override - Monarch expects this column to exist in the test and will look for source by default
  • id_col_override - Monarch expects this column to exist in the test and will look for id by default
• Other Columns
  • source_explorer_index_source - Corresponds to one of the configured sources for source explorer (e.g. Landed or Merged). Defaults to Merged if omitted
  • pass_threshold - Decimal representation of percentage of passing records to consider this a passing test (e.g. 0.90 means at least 90% of records must succeed). Internally Monarch defaults this to 0.95
  • score_weight - Integer representing how much to weigh this test when calculating report grade. Internally Monarch defaults this to 1
  • enabled - Whether or not to show this test in the UI and include it as part of the report grade calculation. Behaves as true when the value is null. DAG 05 must be rerun for the changes to take effect

monarch_config.report_master

• Defines how to count and aggregate the total number of records a given report applies to. There's one report per row in this table. It's used in conjunction with test_to_report_mapping to populate the report overview page. It gets updated by DAG 05_generate_and_export_reports.
• Columns:
  • report_name - The name of the report. Must match the corresponding row in test_to_report_mapping
  • report_schema_name - The name of the schema where this report will go. Must match the corresponding row in test_to_report_mapping
  • aggregate_col - The column Monarch will use to get the total record count. This is usually set to id or source_id and must exist in the aggregate_table
  • aggregate_table - The dataset the quality report is being run on. Include both the schema and table here (e.g. staging.account or landing.practicing_relationship)
  • enabled - Whether or not to show this report in the UI. Behaves as true when the value is null. DAG 05 does not need to be rerun for the visual change to take effect

utilities.error_id_mapping

• Maps descriptions of errors to an Id and recommended fix. Monarch will add new rows it parses from your configured reports to this table

utilities.error_comment_breakdown

• Maps an error code to a row of data. Comments and fixes added in the UI are stored here.

Report grades (DAG 05)

• monarch_reports.ui_v12_report_grade – Built by DAG 05 from ui_v12_overview_display. One row per (report_name, source) with a grade (A, B, C, D, F, or I for Incomplete). A report gets a letter grade only when it has at least 5 tests; otherwise the grade is I. The score is the normalized weighted sum of passing tests (each test’s pass/fail is determined by pass_threshold; weights come from score_weight). Letter bands: A ≥ 0.9, B ≥ 0.8, C ≥ 0.7, D ≥ 0.6, else F.
• Total Quality Grade (on the Quality Summary Report) is the average of per-report letter grades: A=4, B=3, C=2, D=1, F=0. Reports with grade I (Incomplete) are excluded. The numeric average is then mapped back to a letter (e.g. 3.5 → A). If all reports are Incomplete, the total is shown as N/A.

Developer Tools for Config Parsing

You can edit the config tables in the database directly or utilize one of the two available parsing tools.

1. YAML

When you set up DBT generic data tests and save the failures, DAG 05_generate_and_export_reports will automatically parse the yaml file to populate the report tables. By default the report_name field will be the name of the model the test is under.

2. DBT File Header

If writing singular DBT data tests, you can add a comment to the top of the file with this format for DAG 05_generate_and_export_reports to parse:

{#
@test_to_report_mapping
report_name: account_basics
default_error_level: Warning
error_type_override_col: error_type
message_override_col: message
recommended_fix: IT Fix
source_explorer_index_source: Landed
test_to_report_mapping@
#}

Alternate:

-- @test_to_report_mapping
-- report_name: account_basics
-- default_error_level: Warning
-- error_type_override_col: error_type
-- message_override_col: message
-- recommended_fix: IT Fix
-- source_explorer_index_source: Landed
-- test_to_report_mapping@

The fields must be between @test_to_report_mapping and test_to_report_mapping@ for them to be parsed correctly.

All fields are optional and will default to the following if omitted:

Field	Default
report_name	custom
report_schema_name	custom_reports
test_schema_name	The name of the schema this test will be saved to
table_name	The name of this test file
default_error_level	Error
error_level_override_col	None
default_error_type	None
error_type_override_col	error_type
default_message	None
message_override_col	None
recommended_fix	IT Fix
recommended_fix_override	None
sourceid_col_override	None
source_col_override	None
id_col_override	None
source_explorer_index_source	None
pass_threshold	None
score_weight	None
enabled	True

If the comment includes a field not in the above list, it will not be parsed.

4. Generating Custom Reports

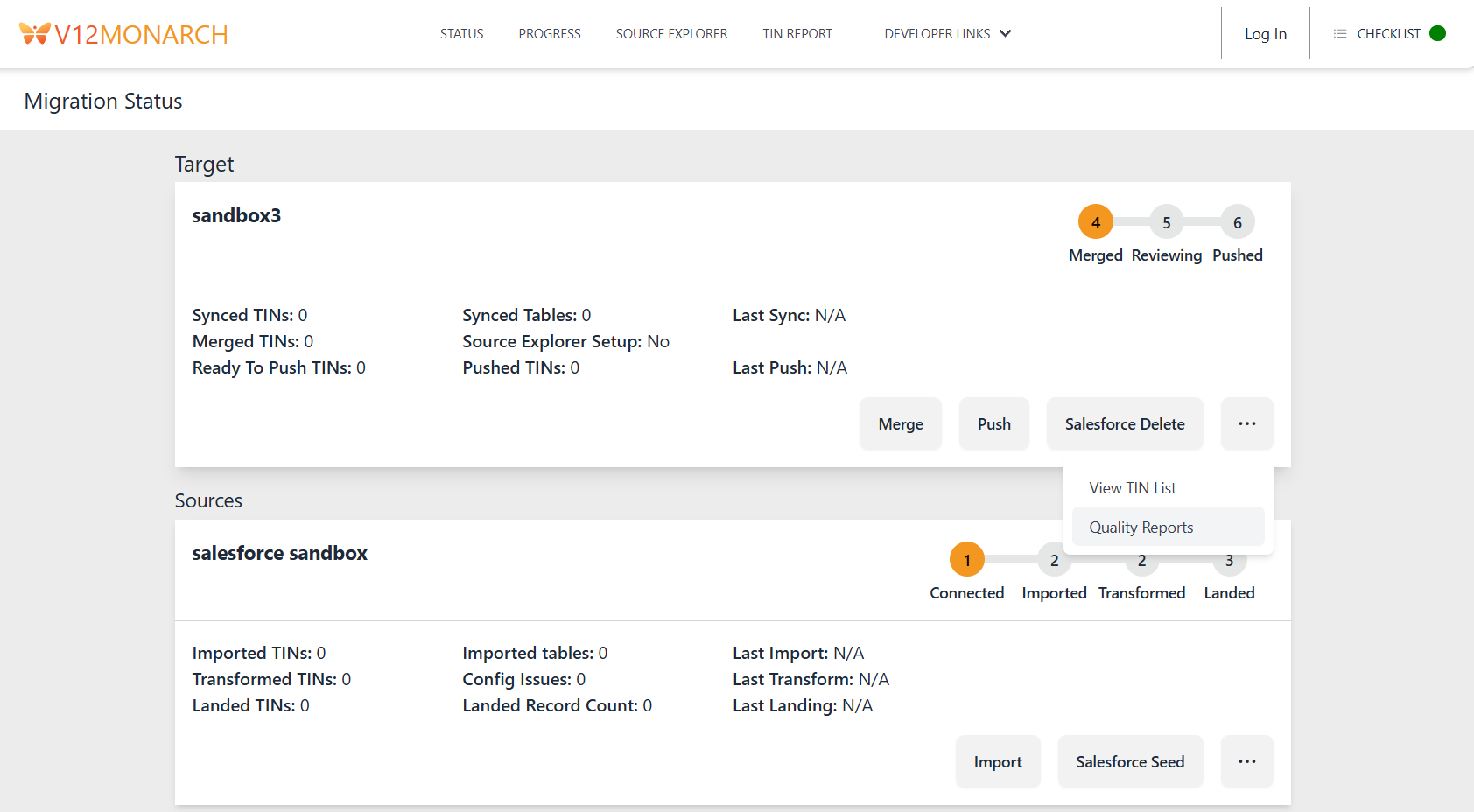

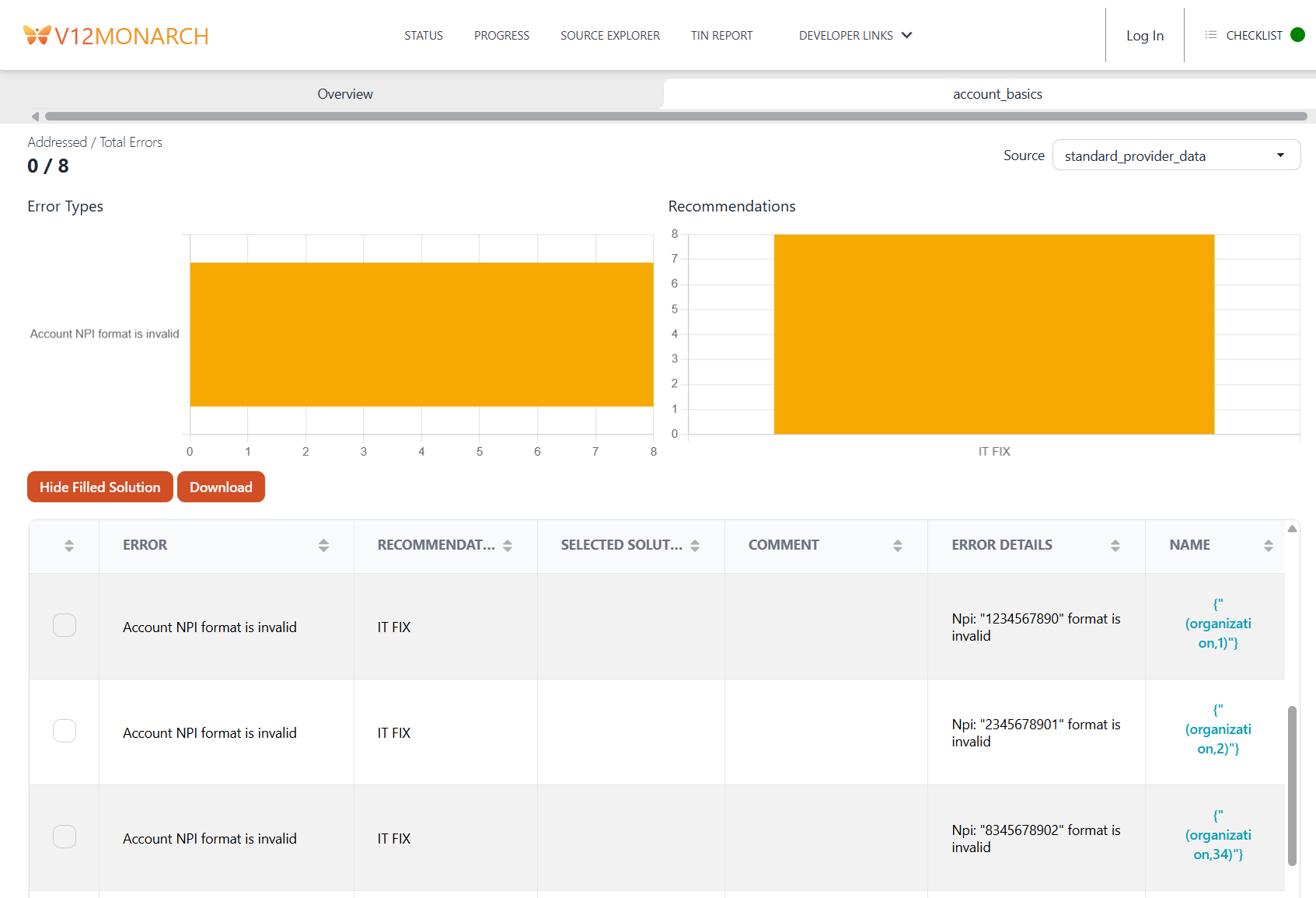

Once your dbt tests have been run, run DAG 05_generate_and_export_reports to generate Monarch's custom reports. This dag will create a version of each configured test in the custom_reports schema to populate the data on the reports screen. To view them, navigate to the status page, scroll to the desired source, click the ... button, then click "Quality Reports".

Debugging

Once values are in the custom_reports schema, they should appear in the UI. If you are not seeing results in the UI, confirm that the columns and settings in test_to_report_mapping and report_master are configured correctly.
